PCB Layout to order

Manual

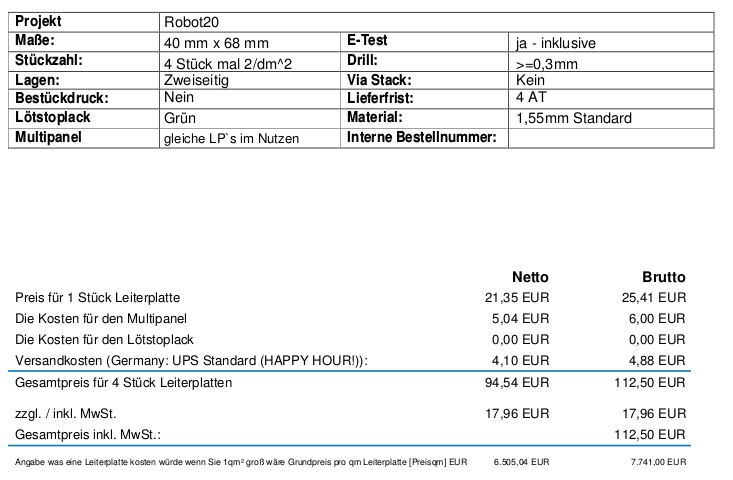

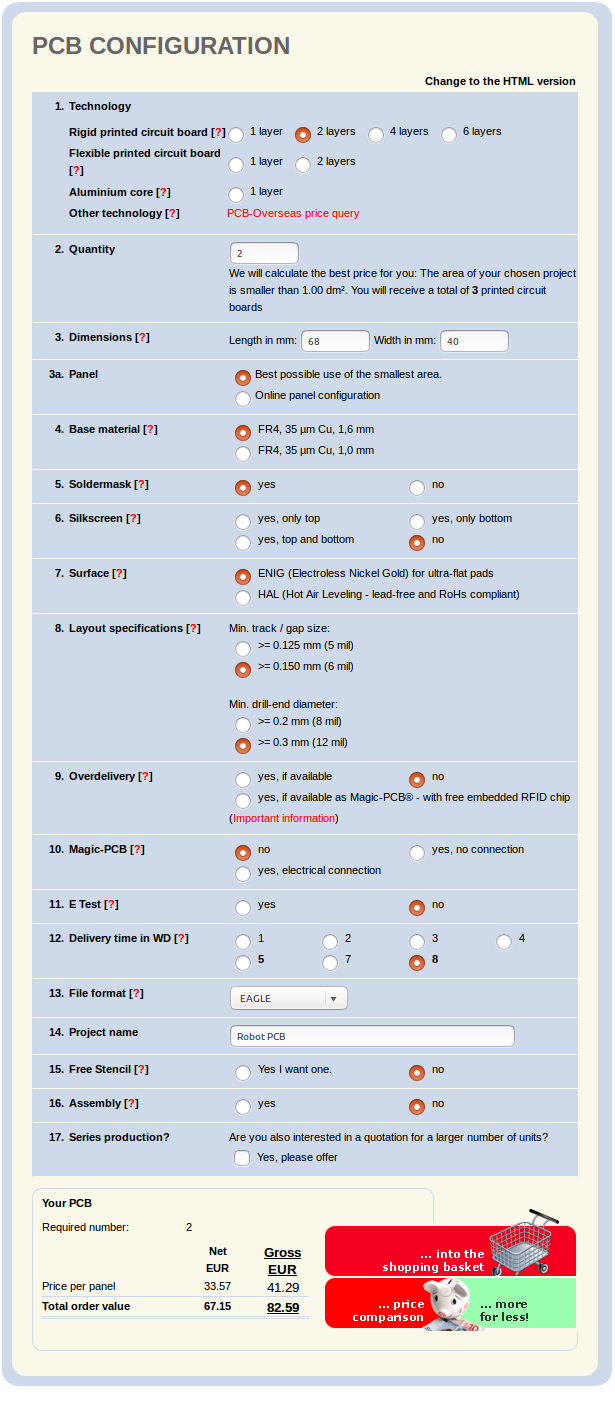

You can order the needed PCB for example at one of the following links. Usually all standard settings will be fine, it is a 2 layer PCB. If you want to modify the PCB, you can do it with the free version of eagle. Example settings are shown below:

pcb-order

PCB-Preis-D

Links to order

Cheap, maybe longer delivery time (China):

http://dirtypcbs.com/

German:

https://www.basista.de/

More expensive:

https://www.pcb-pool.com/ (direct link to order page here)

Of course you can also use any other supplier for PCBs.



Download

Please download and unzip the file below. To order the PCB, you just need the *.brd file.
The *.sch file is only needed if you want to modify the layout yourself:

PCB

One thought on “PCB Layout to order

  1. Matthias

    Ich habe für PCB Bestellungen mit OSH Park (https://oshpark.com/) sehr gute Erfahrungen gemacht.
    Ich habe für 3 Boards total USD 21 bezahlt (incl. Versand!).
    Von der Bestellung bis sie in meinem Briefkasten waren vergingen 3 Wochen.
    Die bestellte Anzahl von Boards muss ein mehrfachen von 3 sein (mind. für so kleine Boards).
    Die Vorlagen für die Boards könnten sogar unter ‘Shared Projects’ abgelegt werden, dann müssten sie nicht einmal mehr individuell hochgeladen werden.
